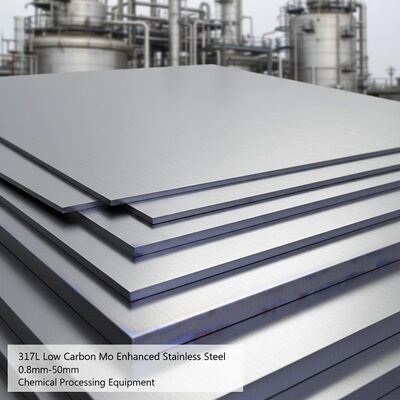

317L Low Carbon Molybdenum Enhanced Stainless Steel Sheet with Superior Sulfuric Acid Resistance for Chemical Processing
| Tempat asal | Shanxi, Tiongkok |
|---|---|
| Nama merek | Hongtu |
| Sertifikasi | ISO 9001:2015, SGS, ASTM A240/A240M, EN 10088-2 |
| Nomor model | 317L (UNS S31703) |
| Kuantitas min Order | 500kg |
| Harga | USD 4.2-6.8 / kg |
| Kemasan rincian | Film pelindung PVC, kertas anti karat, palet kayu kelas ekspor dengan tali baja, tersedia kemasan va |
| Waktu pengiriman | 5-10 hari kerja untuk stok, 15-25 hari untuk produksi |
| Syarat-syarat pembayaran | T/T, L/C, PayPal, Serikat Barat |
| Menyediakan kemampuan | 1500 ton per bulan |
Detail produk
| Paduan | 317L (UNS S31703 / 1.4438) | Melunakkan | Anil, Canai Dingin, Canai Panas |
|---|---|---|---|
| Ketebalan | 0,8mm - 50mm | Lebar | 1000mm, 1219mm, 1250mm, 1500mm, 2000mm |
| Panjang | 2000mm, 2438mm, 3000mm, 6000mm atau Disesuaikan | Standar | ASTM A240, EN 10088-2, GB/T 4237, JIS G4304 |
| Permukaan Selesai | No.1, 2B, BA, No.4, 8K | Kekuatan tarik | ≥ 515 MPa |
| Kekuatan hasil | ≥ 205 MPa | Pemanjangan | ≥ 40% |
| Pren (resistensi pitting) | ≥ 24,0 | Aplikasi | Pengolahan Kimia, Sistem FGD, Pulp & Kertas, Pengolahan Makanan, Peralatan Farmasi |
| Menyoroti | 317L Molybdenum Stainless Steel Sheet,Chemical Processing SS 317L Plate,Acid Resistant 317L Alloy Sheet |
||
Deskripsi Produk
317L Low Carbon Molybdenum Enhanced Stainless Steel Sheet 0.8mm-50mm for Chemical Processing Equipment
Product Overview
317L is a premium austenitic stainless steel with enhanced molybdenum content (3.0-4.0%), providing significantly improved corrosion resistance over standard 316L in aggressive chemical environments. The low carbon grade (≤0.03% C) prevents intergranular corrosion in as-welded condition. This makes 317L the material of choice for chemical processing equipment, flue gas desulfurization (FGD) systems, pulp and paper digesters, and food processing involving acidic products.
Key Features
- Enhanced Molybdenum Content: 3.0-4.0% Mo provides superior resistance to pitting, crevice corrosion, and reducing acid attack
- Superior Sulfuric Acid Resistance: Excellent performance in sulfuric acid concentrations up to 5% at elevated temperatures
- Low Carbon (L-Grade): Maximum 0.03% carbon eliminates sensitization during welding, no post-weld heat treatment required
- Higher Nickel Content: 11.0-15.0% Ni improves resistance to stress corrosion cracking and enhances formability
- Excellent Pitting Resistance: PREN (Pitting Resistance Equivalent Number) ≥ 24.0, outperforming 316L (PREN 23.0)
- Good High-Temperature Strength: Superior creep rupture strength compared to 316L at elevated service temperatures
Chemical Composition (Weight %)
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | ≤0.03 | ≤2.00 | ≤0.75 | ≤0.045 | ≤0.030 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | ≤0.10 |
Mechanical Properties (Annealed, Room Temperature)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2% offset) | ≥ 205 MPa |
| Elongation in 50mm | ≥ 40% |
| Hardness (Rockwell B) | ≤ 95 HRB |
| Density | 8.0 g/cm³ |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 0.8mm - 50mm |
| Width | 1000mm - 2000mm |
| Length | 2000mm - 6000mm or Custom |
| Surface Finish | No.1, 2B, BA, No.4, 8K Mirror |
Applications
- Chemical processing vessels, tanks and reactors
- Flue gas desulfurization (FGD) scrubber internals
- Pulp and paper digester and bleach plant equipment
- Food processing equipment handling acidic products
- Pharmaceutical manufacturing equipment and cleanrooms
- Textile dyeing and bleaching equipment
- Petrochemical and refinery sour service components
Our Advantages
- Verified Mo Content: Every batch spectrographically tested to confirm 3.0-4.0% molybdenum content
- Corrosion Test Reports: ASTM G48 pitting test and ASTM A262 intergranular corrosion test data available
- Low Carbon Guaranteed: ≤0.03% carbon verified on every heat with full traceability
- Custom Cutting: Precision water jet, laser and plasma cutting to your specified dimensions
- Global Shipping: Experienced in export documentation and packaging for chemical industry standards
Contact our technical team for a detailed quotation on 317L stainless steel sheets. Free samples and material certification provided.
