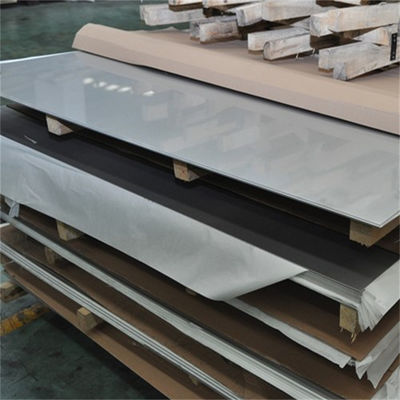

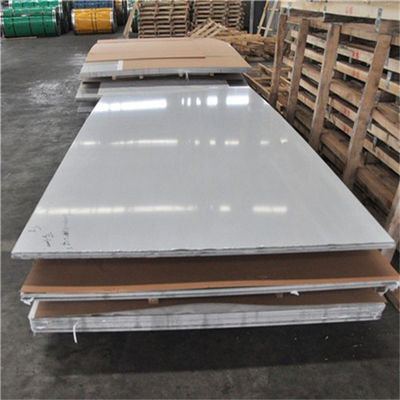

HL Hairline Finish Duplex 2205 Sheet - Corrosion Resistant High Strength Architectural Cladding
| Tempat asal | Cina |
|---|---|
| Nama merek | TISCO, ZPSS,BAOSTEEL,LISCO,JISCO |
| Sertifikasi | SGS,ISO,CE,BIS |
| Nomor model | 200 SERI, 300 SERI, 400 SERI, 904l,2205,2507 dll. |
| Kuantitas min Order | 1 ton |
| Kemasan rincian | Ekspor kemasan layak laut dengan palet kayu dan diikat dengan baik dan terlindungi, Atau sesuai kebu |
| Waktu pengiriman | 3 ~ 10 HARI, Sebagian besar ukuran tersedia |
| Syarat-syarat pembayaran | L/C,T/T,Western Union |
| Menyediakan kemampuan | 2000Ton / Bulan |
Detail produk
| Nama Produk | HL Hairline Finish Duplex 2205 Sheet untuk Pelapis Arsitektur dan Dinding Tirai | Teknik | Dingin atau panas yang digulung |
|---|---|---|---|
| Sampel | Bebas Pasokan | Standar | ASTM A240/240M ; ASME SA-240/SA-240M; JIS G4305; DIN/BS/NF EN10028-7 ; ISO; GB/T 3280-2015 |
| Nilai | 2507,2205,201,304, 304L 316, 316L ,430, 410, 420, 316Ti, 321, 301, 309,309S, 310, 310S, dll. | Tepian | Tepi Penggilingan; Potong Tepi |
| Lebar panjang | 1000*2000;1219*2438;1219*3048; 1000*2000;1219*2438;1219*3048; 1250*3000;1500*3000;1 | Permukaan | NO.1,2B,BA,8K,No.4,HL,SB, Timbul, Kotak-kotak, dll. |
| Ketebalan | Digulung Dingin: 0,3mm ~ 6mm; Digulung Panas: 3mm ~ 60mm | Istilah Perdagangan | FOB,CIF,EXW,CFR,DDU,DDP,DAP |
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
| Finish | Definition | |
|---|---|---|
| No.1 | Hot Rolled | |
| No. 2B | Cold-rolled , bright finish ; |
Deskripsi Produk
HL Hairline Finish Duplex 2205 Sheet for Architectural Cladding and Curtain Walls
HL Hairline Finish Duplex 2205 Sheet for Architectural Cladding and Curtain Walls
Product Overview
Our HL (hairline) finish duplex 2205 sheets combine aesthetic appeal, high strength, and outstanding atmospheric corrosion resistance for coastal building cladding.
Problem Statement
304 or 316 curtain walls in marine environments show tea-staining and pitting within 2-5 years, requiring costly maintenance.
Solution
Duplex 2205 provides 10× the pitting resistance of 304, a uniform hairline finish hiding fingerprints, and higher strength allowing thinner panels.
Specifications
| Parameter | Details |
|---|---|
| Grade | 2205 |
| Thickness | 1-4mm cold rolled |
| Finish | HL, No.4, No.1 |
| Size | 1219×3048, 1500×3000 mm |
| Standard | ASTM A240M |
Applications
- Coastal building façades
- Curtain walls
- Elevator interiors
- Bridge railings
How It Works
The directional HL brush pattern (grain 120-180) diffuses light and hides micro-scratches. Duplex structure resists airborne chlorides.
Selection Guidelines
For direct sea spray, use 2205 HL. For inland high humidity, 2205 is optional. Ensure matching anodized aluminum contact is avoided.
Frequently Asked Questions
Q1: Can HL finish be matched after welding?
Yes, with brush refinishing.
Q2: Is it more expensive than 316L?
Slightly, but longer life.
Q3: Does it rust in salt air?
Virtually no red rust.
