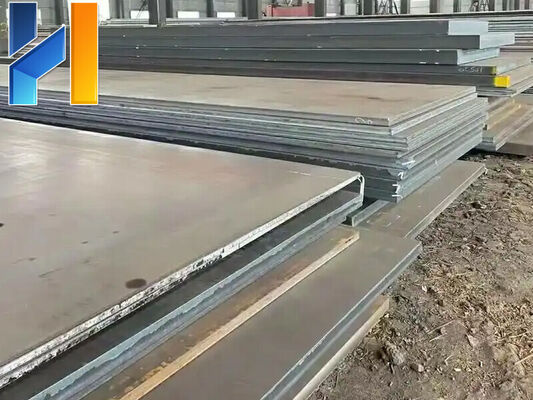

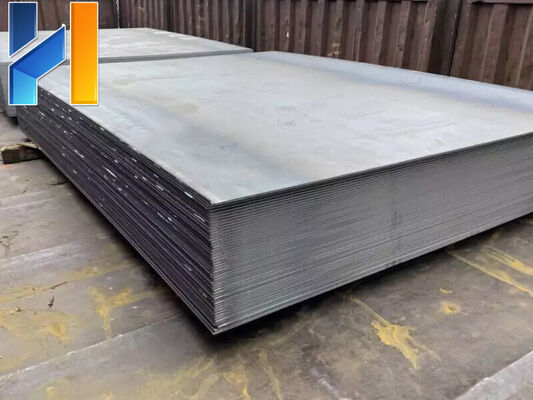

Plat dan lembaran baja karbon kekuatan tinggi yang digulung dingin dengan ketebalan 0,15mm-300mm untuk aplikasi industri
Product Details
| Ketebalan: | 0,15mm-300mm | Lebar: | 1250mm 1500mm |
|---|---|---|---|
| Panjang: | 1000mm-12000mm | Teknik: | Canai Dingin dan Canai Panas |
| Nilai: | Q550NQR1 | Kandungan karbon: | 0,15 |
| Konten silikon: | 0,75 | Konten mangan: | 2.00 |
| Konten fosfor: | 0,06-0,12 | Kandungan belerang: | 0,008 |
| Kandungan Tembaga: | 0,25-0,50 | kandungan kromium: | --- |
| Konten nikel: | --- | Jenis baja karbon: | Baja karbon tinggi |
| Struktur mikro: | mutiara | ||
| Menyoroti |
Plat baja karbon kekuatan tinggi,Lembaran baja karbon canai dingin,Pelat Baja Tebal 0 |
||
Product Description
- Konstruksi (balok, kolom, rangka)
- Otomotif (sasis, komponen struktural)
- Manufaktur Mesin (rangka, alas, peralatan berat)
- Infrastruktur (jembatan, pipa)
- Fabrikasi Umum
| Nama Produk | Standar | Pilihan Material | Teknik |
|---|---|---|---|
| Lembaran baja karbon / pelat baja | JIS, AISI, ASTM, GB, DIN, EN | ASTM: Grade B, C, D, A36, 36, 40, 42, 50, 55, 60, 65, 80 EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE |
Digulung Dingin dan Digulung Panas |
| Ketebalan | Lebar | Panjang |
|---|---|---|
| 0,15mm-300mm | 1250mm 1500mm atau sesuai kebutuhan klien | 1000mm-12000mm atau sesuai permintaan khusus pelanggan |
| Grade | C (maks) | Si | Mn | P (maks) | S (maks) | Cu | Cr | Ni |
|---|---|---|---|---|---|---|---|---|
| Cor-ten A | 0,12 | 0,25-0,75 | 0,20-0,50 | 0,01-0,2 | 0,03 | 0,25-0,55 | 0,5-1,25 | 0,65 |
| Cor-ten B | 0,16 | 0,3-0,5 | 0,8-1,25 | 0,03 | 0,03 | 0,25-0,40 | 0,4-0,65 | ≤0,4 |
| SPA-H | 0,12 | 0,2-0,75 | 0,60 | 0,07-0,15 | 0,035 | 0,25-0,55 | 0,3-1,25 | 0,65 |
| Q355NH | 0,16 | 0,5 | 0,50-1,50 | 0,03 | 0,030 | 0,25-0,55 | 0,40-0,80 | 0,65 |
| Q460NH | 0,12 | 0,65 | 1,50 | 0,025 | 0,030 | 0,20-0,55 | 0,30-1,25 | 0,12-0,65 |
| Kandungan Karbon (wt.%) | Mikrostruktur | Sifat | Contoh |
|---|---|---|---|
| Baja karbon rendah (< 0,25%) | Ferrit, perlit | Kekerasan dan biaya rendah. Daktilitas, ketangguhan, kemampuan mesin, dan kemampuan las tinggi | AISI 304, ASTM A815, AISI 316L |
| Baja karbon sedang (0,25 – 0,60%) | Martensit | Kekerasan rendah, kekuatan sedang, daktilitas dan ketangguhan | AISI 409, ASTM A29, SCM435 |
| Baja karbon tinggi (0,60 – 1,25%) | Perlit | Kekerasan tinggi, kekuatan, daktilitas rendah | AISI 440C, EN 10088-3 |
Product Highlights
08# / 1008 / SPHE,S10C / DC01(1.0330) Pelat/Lembaran Baja Karbon Pelat Baja Struktural Karbon Pelat baja struktural karbon mengacu pada baja karbon yang mengandung kurang dari 0,8% karbon. Baja ini mengandung sulfur, fosfor, dan inklusi non-logam yang lebih sedikit dibandingkan baja struktural ...
Harga Murah Hot Rolled Carbon Steel Coil DC01 DX51D 235JR S275JR S355JR A36 5mm Mild Steel Coil
Product Description: Carbon steel coil are made from slabs, which are heated and then rolled into strips by rough rolling mills and finishing rolling mills. The high-temperature steel strip coming out of the finishing mill is cooled to the set temperature by laminar flow and wound into a coil by a ...
Ah36 S235jr S355jr S355j2+N 4x8 besi cor baja karbon ringan plat dengan harga murah
Product Description: Carbon steel plate is a kind of material with a large amount of use, which is divided into ordinary low carbon steel plate and special steel plate, including low alloy high strength steel and corrosion and heat resistant clad steel plate. Ordinary low-carbon steel sheets are ...
Airwork 45 # 20 # 16mn 42crmo Las Erw Karbon Baja Pipa Hot Sale
Product Description: The complex chemical and physical properties of the various grades of carbon steel pipe allow for a broad range of service usage. American Piping Products has the right grade, size and price to meet your requirements, including A/SA-106 GRADE B/C and API 5L X-42 thru X-70. A/SA...
JIS Standard Hot Rolled High-Strength Carbon Steel Plate SS400 Q235B Lembar Baja
Product Description: Carbon steel plate is a kind of material with a large amount of use, which is divided into ordinary low carbon steel plate and special steel plate, including low alloy high strength steel and corrosion and heat resistant clad steel plate. Ordinary low-carbon steel sheets are ...
Please use our online inquiry contact form below if you have any questions, our team will get back to you as soon as possible.
